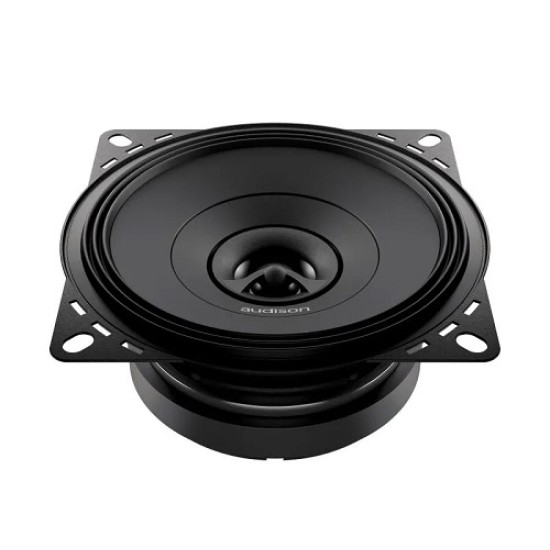

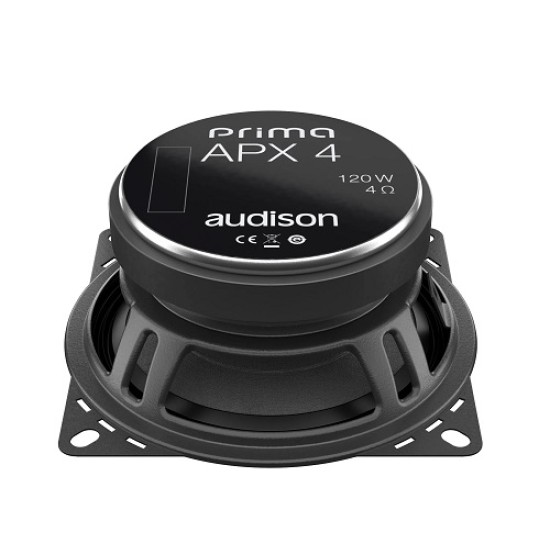

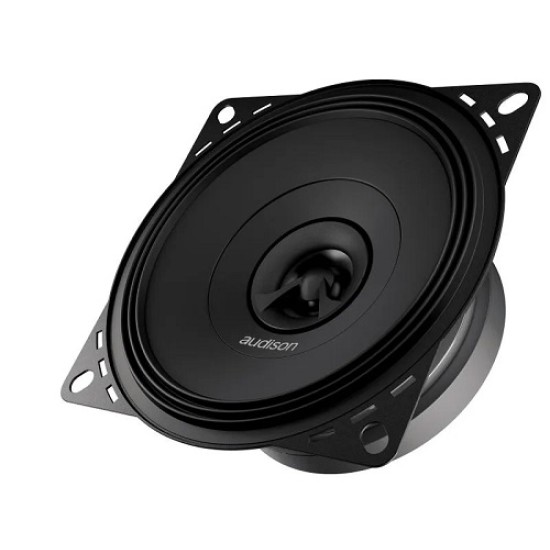

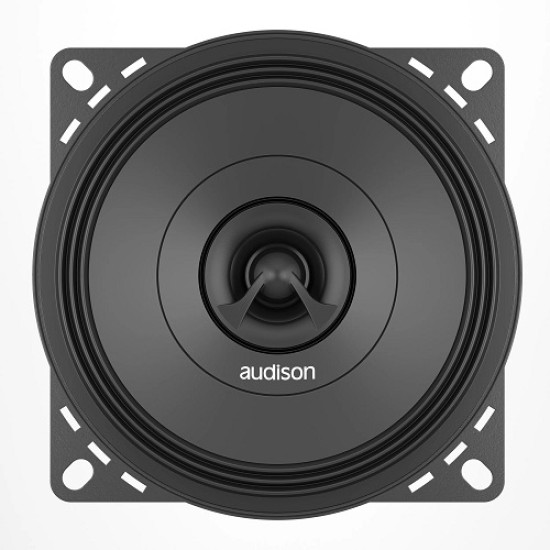

Audison Prima APX 4 10cm коаксиален говорител

Цената е за чифт!

упътване

техническа информация

2-лентов коаксиален говорител

Размер: мидбас - 100mm / 4"

               високочестотен - 24mm

Честотна лента: 80 ÷ 23 000Hz

Мощност: 120W peak / 40W rms

Импеданс: 4Ω

Чуствителност: 91dB SPL

APX 4 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.The 4³ cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

Woofer Size 100 mm

Tweeter Size 24 mm

Woofer Power Handling - Peak 120 W

Woofer Power Handling - Continuous 40 W

Woofer Impedance 4 Ohm

Woofer Frequency Response 80 ÷ 23k

Woofer Magnet Size 75 x 40 x 10

Woofer Voice Coil Diameter 32 mm

Tweeter Voice Coil Diameter 15 mm

Xmax 1.3 mm

Features

Concentric Coaxial Tweeter: tweeter is mounted within the

woofer with one single point of emission providing consistent

phase response, with an accurate recreation of the sound stage

comparable to that of a component system.

Tweeter features an acoustic lens specifically designed to

ensure an extremely linear frequency response, even in off-axis

placement, typical of in-door installations.

32 mm pure copper voice coil, for high power handling and

outstanding low frequency control.

Overall mounting depth optimized for OEM Integration thanks

to the concentric tweeter and the low profile basket.

Water-repellent treated paper cone, featuring a profile developed

with FEM (Finite Element Method) simulation technology and

optimized with the Klippel Scan Vibrometer.

TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.

Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.

High current fast-on terminal with double contact on positive

and negative poles for high flexibility and quick connection. The

terminal features a temperature resistant plastic cover,

protecting it against accidental short circuits.

Developed with the KLIPPEL suite.
