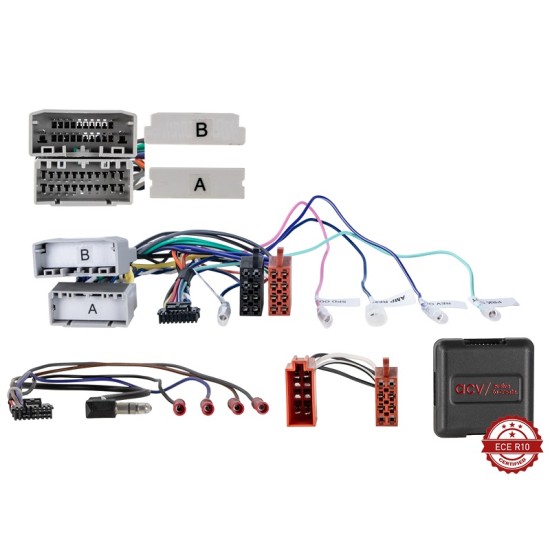

ACV 42xch00c-0 SWC Модул за управление от волана за Chrysler/Dodge/Jeep/Lancia/Mitsubishi/VW

SWC Chrysler/Dodge/Jeep/Lancia/Mitsubishi/VW bulk

CAN Bus

connector: 22 Pin Chrysler // 24 Pin Chrysler

connector: OEM SWC > 3,5mm Jack / loose wire

blue/white: +12V Amp remote

vehicles with CAN Bus without +12V switched ignition clamp15

vehicles with/without OEM amplified system

vehicles without Infinity OEM amplified system*/**

vehicles without CAN Bus with +12V ignition**

vehicles without blind spot

blind spot not supported

PDC not supported

speed pulse not supported

OEM amplified system fader not supported

check telephone audio/Sat Nav Audio > change front/rear audio output connection if necessary

dip switch settings for amp aktivation (look into the manual)

dip switch settings for the retrofit device manufacturer (look into the manual)

Съвместими модели:

Chrysler

Chrysler 200 2011 - 2014

Chrysler 300 06/2004 - 12/2010

Chrysler 300C (LX) 06/2004 - 11/2007

Chrysler 300C (LX) 11/2007 - 12/2010

Chrysler 300M 01/2002 - 06/2004

Chrysler Aspen 2007 - 2009

Chrysler Concorde 2002 - 2004

Chrysler Pacifica 2004 - 2008

Chrysler PT Cruiser (PT) 10/2001 - 04/2006

Chrysler PT Cruiser (PT) 01/2006 - 06/2009

Chrysler Sebring (RJ) 03/2001 - 04/2003

Chrysler Sebring (RJ) 04/2003 - 07/2007

Chrysler Sebring (RJ) 05/2007 - 08/2010

Chrysler Town&Country 2008 - 2016

Chrysler Voyager (GK/GY/RG) 03/2001 - 05/2004

Chrysler Voyager (GK/GY/RG) 05/2004 - 03/2008

Chrysler Voyager (RT) 03/2008 - 12/2010

Doge

Dodge Avenger (JS) 06/2007 - 06/2009

Dodge Caliber (PK) 06/2006 - 12/2010

Dodge Caravan 2002 - 2015

Dodge Charger 2009 - 2012

Dodge Challenger 2008 - 2014

Dodge Dakota 2002 - 2011

Dodge Durango 2003 - 2009

Dodge Journey (JC) 06/2008 - 12/2010

Dodge Magnum 2008 - 2009

Dodge Nitro 2007 - 2011

Dodge RAM 2002 - 2008

Dodge RAM Dodge RAM 1500 2009 - 2011

Dodge RAM 2500 2010 - 2012

Dodge RAM 3500 2010 - 2012

Dodge RAM chassis cab 2011

Dodge RAM C/V Tradesman 2012 - 2015

Dodge Stratus 2002 - 2006

Dodge Viper (SR) 11/2003 - 04/2010

Jeep

Jeep Commander (WH) 05/2008 - 11/2010

Jeep Compass (PK) 11/2006 - 06/2010

Jeep Compass (PK) 05/2011 - 12/2016

Jeep Grand Cherokee (WJ) 10/2001 - 06/2005

Jeep Grand Cherokee (WH) 06/2005 - 10/2007

Jeep Grand Cherokee (WH) 10/2007 - 12/2010

Jeep Grand Cherokee (WK) 12/2010 - 06/2013

Jeep Liberty 2002 - 2012

Jeep Patriot (PK) 2007 - 2017

Jeep Wrangler (TJ) 01/2003 - 03/2007

Jeep Wrangler (JK) 04/2007 - 02/2011

Jeep Wrangler (JK) 02/2011 - 07/2018

Lancia

Lancia Voyager (RT) 11/2011 - 08/2015

Mitsubishi

Mitsubishi Raider 2008 - 2009

VW

VW Routan 2009 - 2015

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15

orange: +12V illumination clamp 58

purple/white: +12V reverse gear signal

pink: speed pulse signal

green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:

1 relay coil resistance 75 Ohm min.

2 relays coil resistance 150 Ohm min.

SWC

OEM amplified system fader not supported
