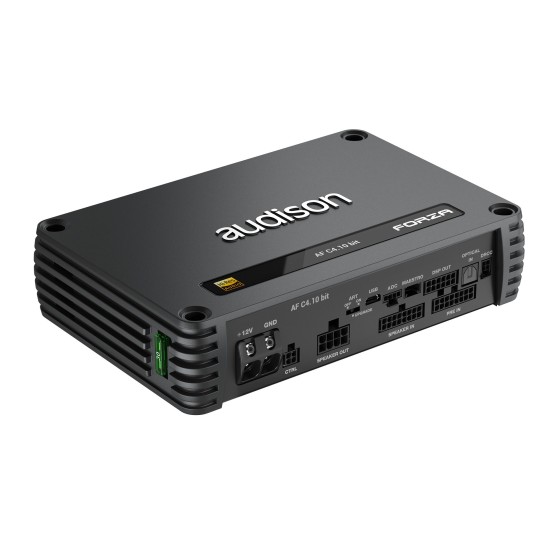

DSP Amplifier | 600 W | 10 CH DSP + 4 x 150 W @ 2 ohm | D-class Fully Bridgeable
AF C4.10 bit разполага с четири усилени канала с висока прецизност 90W x 4 @4Ω*, 150W x 4 @2Ω*, с аудиофилския звук на последното поколение технология Audison D-Class. По-високите честоти на превключване, по-стръмното филтриране и компонентите с по-висок толеранс осигуряват звук над и отвъд очакванията за клас D – в невероятно компактен пакет! Това е комбинирано с DSP, работещ на 24 бита/96 kHz, разширявайки аудио лентата до 40 kHz и печелейки желания сертификат за висока разделителна способност. Свързването на двойки канали води до 300 x 2 @4Ω, което гарантира гъвкава и мощна производителност. Поддръжката на функцията Absolute Volume на Audison B-Con гарантира максимална битова дълбочина, дори при безжични връзки!* Изходна непрекъсната мощност (RMS) при 14,4 VDC, 1% THD, управлявани от всички канали.
Amplifier Tech Data
| Channels | 4 |
| Class | D-Class |
| Power supply voltage / fuse | 11 ÷ 15 VDC / 1 x 30A |
| Operating power supply voltage | 6.5 ÷ 17.5 VDC |
| Idling current | 1 A |
| Standby Current Draw | 1 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 29 A |
| Remote IN | 4 ÷15 VDC (1 mA) |
| Remote OUT | 6.5 ÷15 VDC (150 mA) |
| ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers | 1.5 VDC |
| AST - Automatic Signal Turn on/off (Selectable) | 1.5 VDC |
| Efficiency Rated Power | 81% |
Amplifier Stage
| Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power | 0.03% |
| Bandwidth @ -1.5 dB | 10 Hz ÷ 42 kHz |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | 95 |
| S/N ratio (A weighted @ 1 V Input) Master Input | 98 dBA |
| S/N ratio (A weighted @ 1 V Input) Optical Input | 105 |
| Total Power RMS | 600 W |
| Minimum load impedance | 2Ω |
| Output Continuous Power (RMS) @14.4 VDC, 1% THD | 4 Ch @ 4Ω: 90 W x 4 4 Ch @ 2Ω: 150 W x 4 2 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2 |
| Adjustable Crossover | Yes |
CEA Specifications
| Output power @ 4Ω, 1% THD+N, 14.4 V | 90 W x 4 |
| SN ratio (ref. 1W output) | 80 dB |
Inputs / Outputs
| Pre-In Inputs | 0.6 ÷ 6 VRMS (15 kΩ Imp.) |
| Digital Input | Yes |
| Pre Outputs | 6 |
| Hi Level Inputs | 8 |
| Low Level Inputs | 8 |
| Speaker-In Inputs | 2.2 ÷ 22 VRMS (5 Ω Imp.) |
| Digital IN | 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card |
Digital Signal Processor
| Audio DSP Converter | Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance |
| Filter type | Full / High-Pass / Low-Pass / Band-Pass |
| Filter mode and slope | Linkwitz-Riley @ 12/24/36/48 dB/Oct. Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct. |
| Crossover frequency | 20 Hz ÷ 20 kHz |
| Phase control | 0° / 180°, All-Pass filters |
| Analog Input Equalizer (20 ÷ 20k Hz) | 12 Biquad + Delay |
| Output Equalizer | Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz |
| Time Alignment Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inches |
| Time Alignment Delay | 0 ÷ 15 ms |
| Input Output Real Time Audio Monitor | RTA |

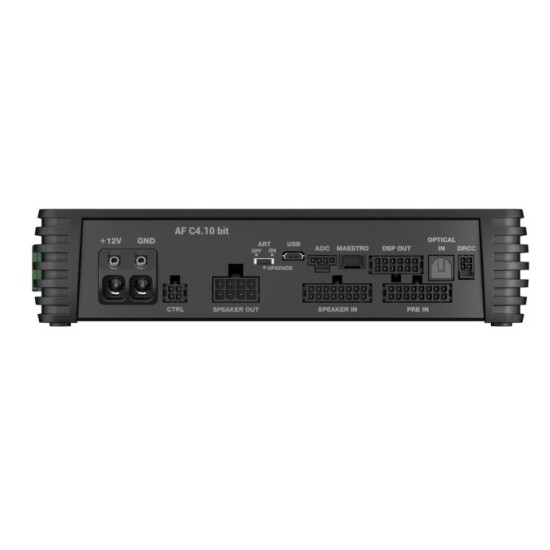

Control Connections
| DRC Port | Input for DRC AC remote control (Optional) |
| ADC Port | Manage other Audison devices that support this standard |
| 1 Wire | Customizable functions (+ 12 V activated) |
| 2 Wire | Customizable functions (+ 12 V activated) |
General Requirements
| PC connections | Micro USB 1.1 / 2.0 / 3.0 Compatible |
| Software/PC requirements | Windows 10, Windows 11 |
| Video Resolution with screen resize | (min. res. 1024 x 768) |
| Ambient operating temperature range | 0 °C to 55 °C (32 °F to 131 °F) |
| Weight | 1.38 kg |
Dimensions
 | |
| Dimension A | 200 mm |
| Dimension B | 134 mm |
| Dimension C | 47 mm |
