Audison Prima AP1 D Mono Amplifier

AP-1D е Моноблок от компактната Prima серия с тотална мощност от 540W/2ohm RMS проектиран да работи с субуфери от 400 до 1000W максимална мощнос и импеданс 2 или 4 ома

Проектиран да работи единствено с процесор на Audison

Audison Prima AP1 D Mono Amplifier 1 x 310W

The AP1 D amplifier was designed to drive a subwoofer and is the ideal extension of the AP8.9 bit and AP4.9 bit. At 2 Ohms it is stable and can supply 540 W power with extremely compact dimension. With the APTK 3 (Audison Prima Tower Kit 3) staking system it's possible to stack the AP1 D and save space without any problem of overheating.

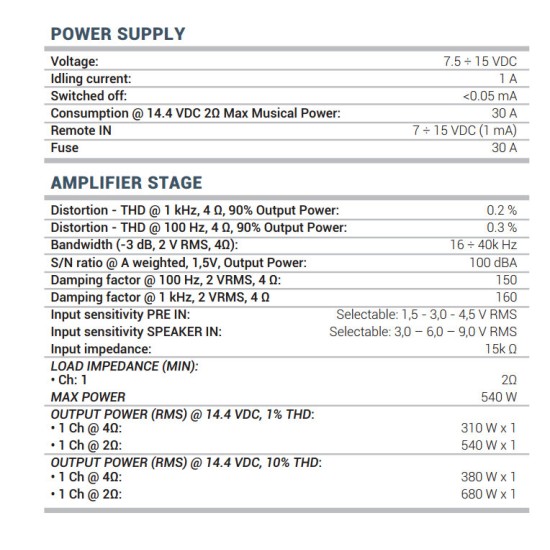

Specification

Distortion - THD @ 1 kHz, 4 ohms , 90% Output Power: 0.2 %

Distortion - THD @ 100 Hz, 4 ohms , 90% Output Power: 0.3 %

Bandwidth (-3 dB, 2 V RMS, 4 ohms ): 16 / 40k Hz

S/N ratio @ A weighted, 1,5V, Output Power: 100 dBA

Damping factor @ 100 Hz, 2 VRMS, 4 ohms : 150

Damping factor @ 1 kHz, 2 VRMS, 4 ohms 160

Input sensitivity PRE IN: Selectable: 1,5 - 3,0 - 4,5 V RMS

Input sensitivity SPEAKER IN: Selectable: 3,0 - 6,0 - 9,0 V RMS

Input impedance: 15k ohms >

LOAD IMPEDANCE (MIN):

Ch: 1 2 ohms

MAX POWER 540 W

OUTPUT POWER (RMS) @ 12.0 / 14.4 VDC, 1% THD:

1 Ch @ 4 ohms : 310 W x 1

1 Ch @ 2 ohms : 540 W x 1

OUTPUT POWER (RMS) @ 14.4 VDC, 10% THD:

1 Ch @ 4 ohms : 380 W x 1

1 Ch @ 2 ohms : 680 W x 1
