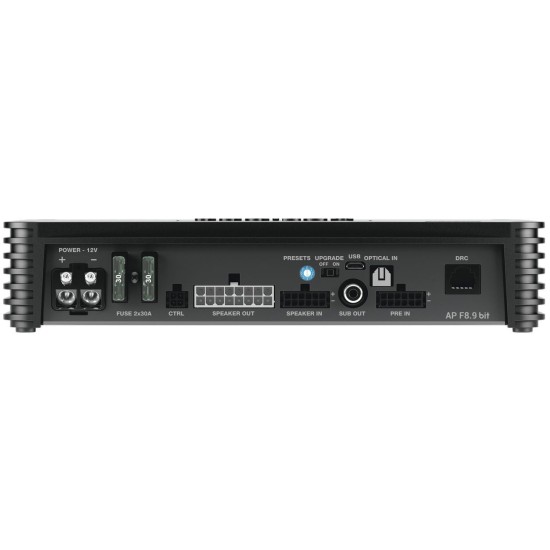

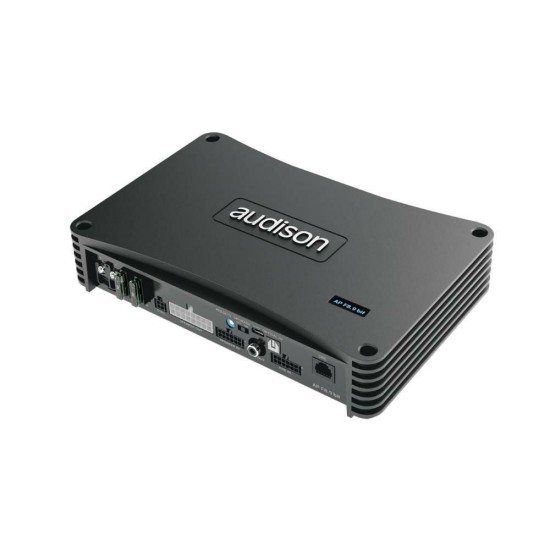

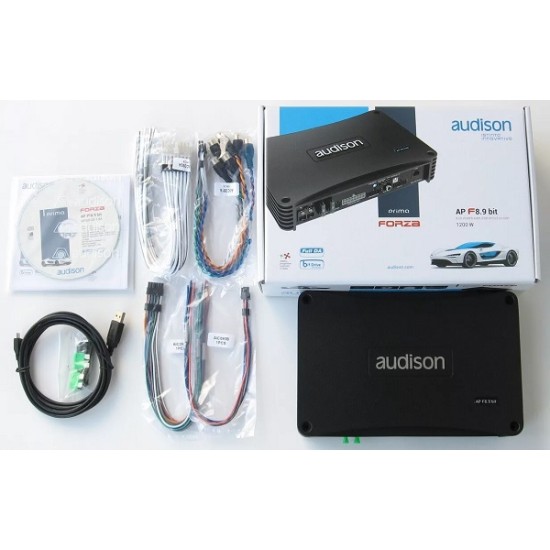

Audison Prima Forza AP F8.9 8x85W RMS + 9 ch. DSP
- Наличност: В наличност
- Модел: AP F8.9
766.43 € (1,499.00 лв.)
без ДДС: 766.43 € (1,499.00 лв.)
Купи с
Свързани продукти
DSP Amplifier | 1040 W | 9 CH DSP + 8 x 130 W @ 2 ohm | D-class Fully Bridgeable
8 канален усилвател с вграден DSP процесор, проектиран за усъвършенстване и ъпгрейд на фабричните аудио система в различни автомобили с изцяло нови висококласни компоненти.
Мощност: 8 x 85W (RMS @ 4Ω)

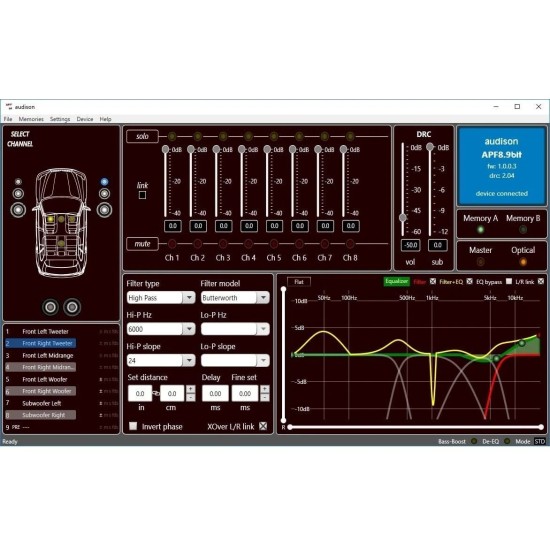

Цялостна настройка посредством специализиран софтуер.
Възможонст на конфигуриране в бридж - 4 канала Х 260W (RMS @ 4Ω)
Лесна настройка и конфигуриране с различен брой и тип на говорители, честотна корекция и тн.
Amplifier Tech Data
| Channels | 8 |
| Class | D-Class |
| Power supply voltage / fuse | 11 ÷ 15 VDC / 2 x 30A |
| Operating power supply voltage | 6.5V ÷17V |
| Idling current | 1.6 A |
| Switched off without DRC MP | 1.7 mA |
| Switched off with DRC MP | 5 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 55 A |
| Remote IN | 6 ÷ 15 VDC (1 mA) |
| Remote OUT | 4 ÷ 15 VDC (150 mA) |
| ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers | 2 ÷ 7 VDC |
| AST - Automatic Signal Turn on/off (Selectable) | Speaker-In |
Amplifier Stage
| Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power | 0,06% |
| Bandwidth @ -1.5 dB | 10Hz ÷ 22kHz |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | > 110 |
| S/N ratio (A weighted @ 1 V Input) Master Input | 100 dBA |
| S/N ratio (A weighted @ 1 V Input) Optical Input | 105 |
| Total Power RMS | 1040 W |
| Minimum load impedance | 8Ch: 2Ω | 4Ch - (Bridge 1/2; 3/4; 5/6; 7/8) : 4Ω |
| Output Continuous Power (RMS) @14.4 VDC, 1% THD | 8Ch @ 4Ω 85 W x 8 8Ch @ 2Ω 130 W x 8 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω 260 W x 4 2Ch @ 4Ω 100 W x 2 2Ch @ 2Ω 150 W x 2 1Ch (Bridge) @ 4Ω 300 W x 1 |
| Output Impulsive Power @14.4 VDC, 1% THD | 8Ch @ 4Ω 100 W x 8 8Ch @ 2Ω 150 W x 8 4Ch (Bridge) @ 4Ω 300 W x 4 |
| Adjustable Crossover | Yes |

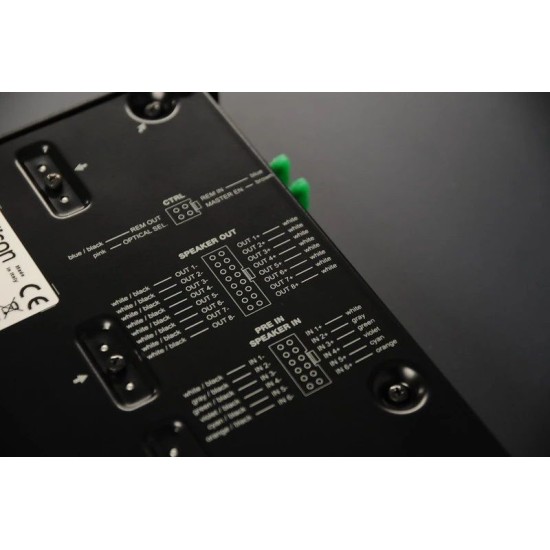

Inputs / Outputs
| Pre-In Inputs | Ch1 ÷ Ch6 customizable |
| Pre Outputs | 1 |
| Hi Level Inputs | 6 |
| Low Level Inputs | 6 |
| Speaker-In Inputs | Ch1 ÷ Ch6 customizable |
| Digital IN | 1 x Optical S/PDIF; Max 192 kHz / 24 bit |
| Sub Out (RCA Pre Out) | 4 VRMS |
Digital Signal Processor
| Filter type | Full / Hi pass / Low Pass / Band Pass |
| Filter mode and slope | Linkwitz @ 12/24 dB Butterworth @ 6/12/18/24 dB |
| Crossover frequency | 68 steps @ 20 ÷ 20k Hz |
| Phase control | 0° / 180° |
| Bass Boost | N.1 Adjustable Parametric Pole |
| Analog Input Equalizer (20 ÷ 20k Hz) | Automatic De-Equalization |
| Output Equalizer | N.9 Parametrics Equalizers: ±12 dB;10 pole; 20 ÷ 20k Hz |
| Time Alignment Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inches |
| Time Alignment Delay | 0 ÷ 15 ms |
| Time Alignment Step | 0.08 ms; 2.8 cm / 1.1 inch |
| Time Alignment Fine SET | 0.02 ms; 0.7 cm / 0.27 inch |
| Preset (Drive Preset) | Rotary switch for 7 installation Presets |
| Input Output Real Time Audio Monitor | N.2 DSP Memory, DRC selectable |
Control Connections
| DRC Port | 1 x AC Link |
| From / To Personal Computer | 1 x Micro USB |
| Optical / AUX select | Optical select wire control +12 V enable |
| Master enable | Master enable wire control +12 V enable |
General Requirements
| PC connections | Micro USB 1.1 / 2.0 / 3.0 Compatible |
| Software/PC requirements | Microsoft Windows (32/64 bit): Vista, Windows 7, Windows 8, Windows 10, Windows 11 |
| Video Resolution with screen resize | min. 1024 x 600 |
| Ambient operating temperature range | 0 °C to 55 °C (32 °F to 131 °F) |
| Size | 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1 |
| Weight | 1.98 kg |
Dimensions
 | |
| Dimension A | 238 mm |
| Dimension B | 218 mm |
| Dimension C | 155 mm |
| Dimension D | 135 mm |
| Dimension E | 49.5 mm |
