Audison SR 4.500 4 канален усилвател 4x130W

Ver.2

Автомобилен 4-канален усилвател за интегриране в мощни озвучителни системи.

Базирана на New D-Class (ADT)  технология намаляваща размера на усилвателя без компромиси в качеството на звуковите характеристики.

Възможност за работа с товари от 2Ω до 4Ω

Вградена технология USS - Universal Speakers Simulator позволяваща директно свързване на високоволтовите балансирани входове към съвременни OEM мултимедии следящи импеданса на товара в автомобила.

Мощност (RMS) @14.4 VDC, 1% THD:

режим 4 канала - 130 x 4 (4Ω)

режим 4 канала - 220 x 4 (2Ω)

режим 3 канала - 120 x 2 (4Ω) + 480 W x 1 (4Ω

режим 3 канала - 220 x 2 (2Ω) + 440 x 1 (4Ω)

режим 2 канала - 450 x 2 (4Ω)

Отношение сигнал/шум (1 W output): 83dB

Inputs:    Pre-In / Speaker-In

Outputs:  PRE OUT full range (Input A)

Front Ch Filters:

Full

Hi-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.

Lo-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.

Rear Ch Filters:

Full

Hi-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.

Lo-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.

A/B Ch MONO IN (on/off) Yes

Bass Boost 50Hz (adjustable) B Ch (0 ÷12) dB

SIZE

Max size W x H x D (mm) 264 x 155 x 47,5

Weight (kg) 2,12

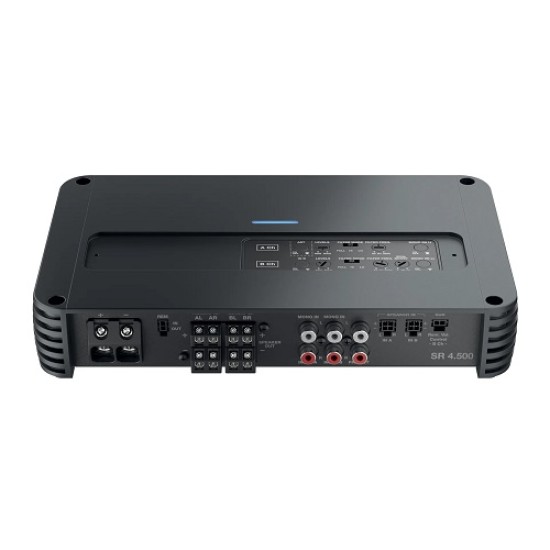

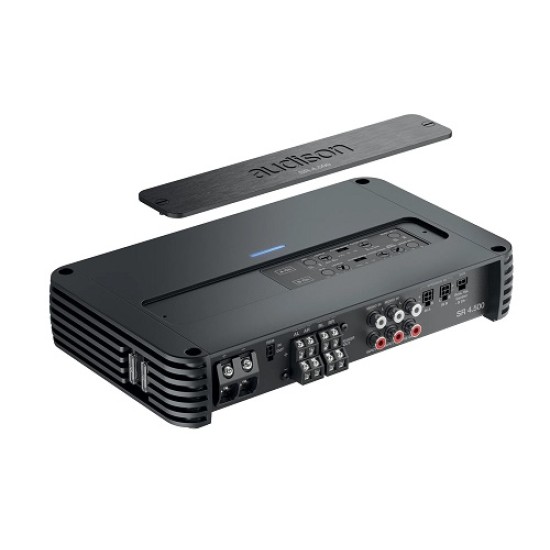

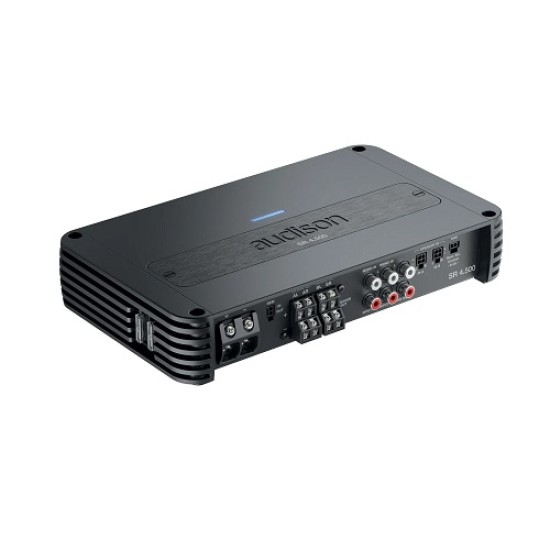

The Audison SR 4.500 4-channel amplifier with crossover features great power packed into ultra-compact dimensions (130 W x 4 @ 4Ω).As far as the electronic design is concerned, every aesthetic and functional detail of the Audison SR 4.500 has been taken care of, resulting in a compact amplifier made of extruded aluminum with rounded corners, which facilitates the installation of the product in narrow spaces. Thanks to the generous heat sinks on the two short sides of the amplifiers, there is no need for internal cooling fans, which often cause noise and dust accumulation. In keeping with tradition, the SR amplifiers confirm their vocation for versatility by including on all models a complete filter section, suitable for any kind of audio system configuration. The controls, protected by a satin-finished aluminium panel, are located on the top panel of the amplifier, so that they can be easily reached from above, even after the product has been installed. When the system includes an Audison bit processor, the filter section can be totally excluded.

Features

Elegant and functional design with rounded corners to minimize space, facilitating installation.

Built-in USS (Universal Speakers Simulator).

Full built-in crossover section.

Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.

Balanced high-level inputs for connecting to the OEM head unit speaker output

Low-level RCA for after-market speakers.

ART (Automatic Remote On/Off) function.

Remote IN / OUT socket to allow control of multiple amplifiers.

PRE-OUT allows for system expansion.

Channels 4

Class D-Class

Hi Level Input Yes

Low Level Input Yes

Digital Input No

Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 25A

Operating power supply voltage 6.5 ÷17 VDC

Idling current 1.7 A

Idling current when off 0.09 mA

Consumption @ 14.4 VDC, 2Ω, Max Musical Power 40 A

Remote OUT 6.5 ÷ 15 VDC (150 mA)

Remote IN 6.5 ÷ 15 VDC (1 mA)

ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 ÷ 7 VDC

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.08 %

Bandwidth A 10 Hz ÷ 35 kHz

S/N ratio A 105 dBA

Damping factor A 200

Input sensitivity Pre-In 0.2 ÷ 5 VRMS

Input sensitivity Speaker-In 0.8 ÷ 20 VRMS

Total Power RMS 880 W

Minimum load impedance @4Ch: 2Ω

@ 3Ch: 2Ω + 2Ω + 4Ω

@ 2Ch: 4Ω

Output Power (RMS) @14.4 VDC, 1% THD 4Ch 130 W x 4 (4Ω)

4Ch 220 W x 4 (2Ω)

3Ch 120 W x 2 (4Ω) + 480 W x 1 (4Ω)

3Ch 220 W x 2 (2Ω) + 440 W x 1 (4Ω)

2Ch 450 W x 2 (4Ω)

Adjustable Crossover Yes

Output power @ 4Ω, 1% THD+N, 14.4 V Output power @ 4Ω, 1% THD+N, 14.4 V: 125 W x 4 Ch

SN ratio (ref. 1W output) SN ratio (ref. 1W output): 83 dBA

Input Type Pre-In / Speaker-In

Filters Outputs PRE OUT full range (Input A)

Filter Pass A Front Ch Filters - Full Hi-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.

Filter Pass B Front Ch Filters - Full Lo-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.

Filter Pass C Rear Ch Filters - Full Hi-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.

Filter Pass D Rear Ch Filters - Lo-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct

Channel Mono A/B Ch MONO IN (on/off) Yes

Inputs/Outputs Sub CH (-20 ÷ 6) dB

Inputs/Outputs Bass Boost B Ch (0 ÷12) dB
